Features:
Centralized electro-hydraulic control for convenient & safe operation.
Man-machine engineering operation handle, button, display and monitor meter.
New generation of ideal piling machine with low use & maintenance cost, high efficiency.

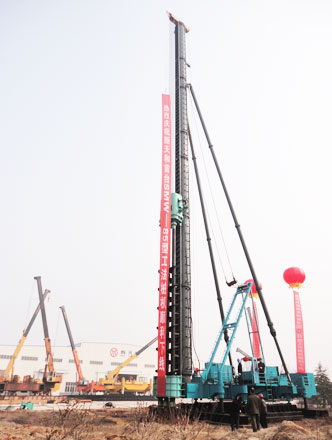

• A new generation of piling machinery product independently developed by the company-SMW construction method piling machine.
• Advanced design, reasonable structure and convenient use.
• The hydraulic walking chassis is adopted, the ground pressure is small, and the stability of the whole machine is good.
• Adopt electro-hydraulic centralized control, easy to operate, safe and reliable.
• The arrangement of the operating rods, handles, buttons, display screens, and monitoring instruments meets the requirements of ergonomics.
• Low cost of use and maintenance and high construction efficiency.
• Suitable for construction, bridges, ports, subways and other underground pile foundation projects and deep foundation pit support projects, as well as water conservancy dams, marine embankment seepage prevention projects.
Features:
Centralized electro-hydraulic control for convenient & safe operation.
Man-machine engineering operation handle, button, display and monitor meter.
New generation of ideal piling machine with low use & maintenance cost, high efficiency.
Item | Unit | Model SMW85 |
---|---|---|
Drill diameter | mm | 850 |
Drill stem quantity | 3 | |
Drill stem diameter | mm | 273 |
Central space between drill stem | mm | 600*600 |
Drill depth | m | 30 |
Motor power | kw | 75×2(4p/8p) |
Drill stem rotate speed | r/min | 32/16 |
Rated torque of single drill stem | kN.m | 45/90 |
Drive mode | Motor top-driving | |
Drill stem connection mode | He×agonal bolt | |
Ma×. draw pile force | kN | 600 |
Hydraulic system working pressure | Mpa | 16 |
Column rail space | mm | 600 |
Moving mode | Hydraulic foot-step | |
Ma×. Longtitudinal pace | m | 1600 |
Ma×.Transverse pace | m | 600 |
Angle range | degree | 10 |
Machine weight | t | 120 |
