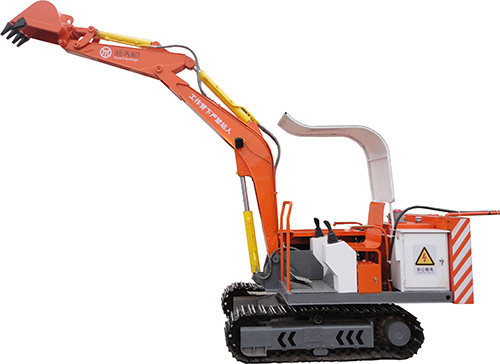

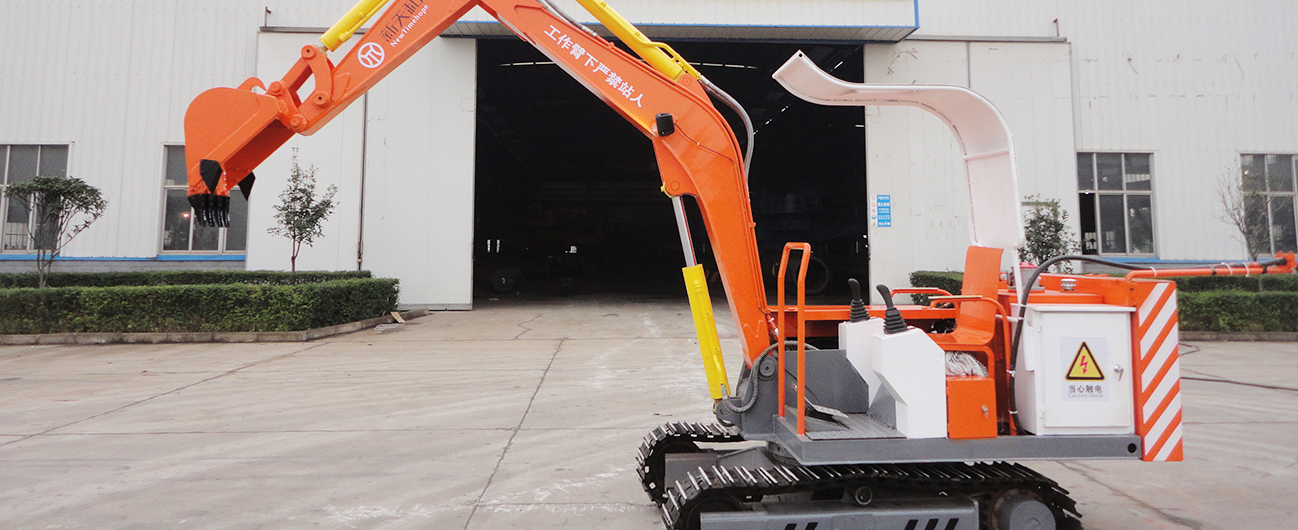

WYL30 share

This product is widely used in the construction of basic projects such as new countryside construction, urbanization construction, villa construction, etc., especially suitable for supporting excavation construction such as long auger drilling rigs, SMW construction method construction, etc.; construction sites in cities that have strict requirements for noise and emission; Indoor and indoor construction where noise and emission requirements are required. This product can also be widely used for mining and loading operations in mines and underground mines.

Order consultation Dial:0731-52825555
  • Features
  • Technical parameter
Features


1. The power system of the machine is driven by a motor, which is energy-saving and environmentally friendly, and the power system is low in maintenance and repair costs;

2. The hydraulic system of the machine adopts load-sensitive control technology, which saves energy and reduces noise, and has superior performance;

3. The full set of hydraulic components are imported to ensure the reliability of the hydraulic system;

4. The machine is equipped with a large-capacity aluminum radiator. In the case of overload operation or continuous operation, the radiator can fully cool the hydraulic system to ensure the reliable operation of the system;

5. All movable joints of the excavator mechanism adopt high-strength connecting pins and high-hardness bushings to improve wear resistance and reduce maintenance costs;

6. Optimized design of the excavator system and chassis system of the machine, the excavator can lift heavy objects;

7. The electrical control system and the illumination surface adopt 24V DC power supply, which is safe and reliable. The lighting adopts LED light, which is energy-saving and has a long service life;

8. The structure of the machine is simple and reasonable, and it is convenient to use, maintain and repair.


Technical parameter



1. Performance parameters


1 Whole machine weight------------ 3400kg

            2 Bucket capacity------------ 0.08m³

            3 Bucket digging force---------- 27.7kN

            4 Bucket stick digging force----------20.1kN

            5 Motor power-------------22kW

            6 Walking speed-------2.6/1.8km/h

            7 Grounding specific pressure-----------37.8kPa

            8 Rotation speed-----------8.8rpm

            9 Lifting weight-------------600kg

            10 Lifting height----------------3m

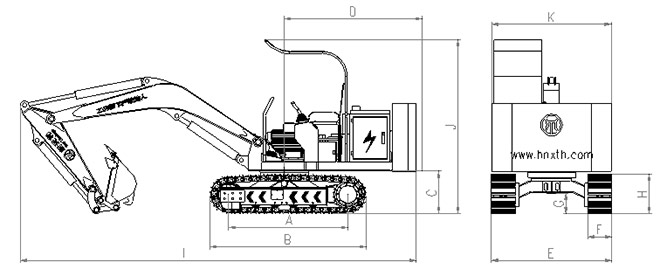

Two, size parameters


A Wheelbase-----------------1500mm

            B Total length of crawler -------------1970mm

            C platform ground clearance --------- 535mm

            D Turning radius of platform tail-----1735mm

            E Chassis width-------------1514mm

            F Track width------------- 300mm

            G Chassis ground clearance----------259mm

            H Track height-------------501mm

            I Total length------------ 4980mm

            J Canopy roof height------------ 2190mm

            K width of the car ------------ 1500mm

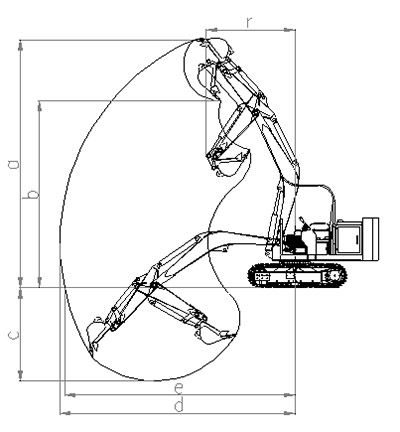

Three, the scope of work


a Maximum digging height ---------4910mm

            b Maximum discharge height---------3710mm

            c Maximum digging depth ---------1840mm

            d Maximum digging radius---------4680mm

            e Maximum ground excavation radius-----4585mm

            f minimum radius of gyration ---------1764mm
