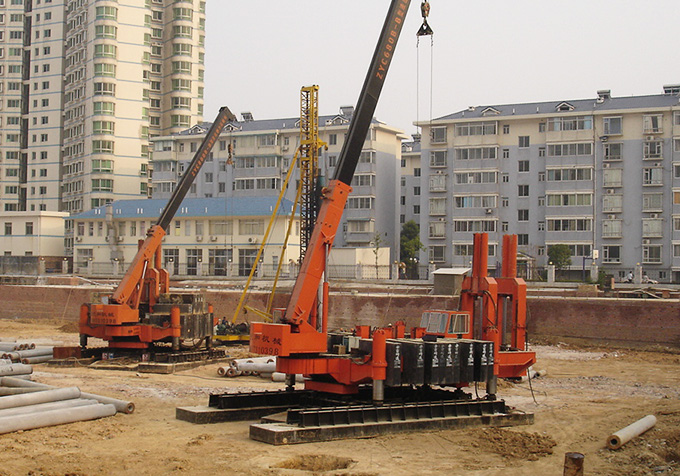

ZYC1200B-B share

• Main product: ZYC series multi-functional Hydraulic Static Pile Driver Self-developed with 5 up-to-date patents.
• The working principle is using hydraulic pressure to clamp precasted pile, H shape or other shape steel pile, and then driving the pile into ground by hydraulic pressing.
• Suitable for piling precast round & square concrete pile, H shape steel pile and other irregular-shaped pile in clay, soft soil and sandy ground.
• It has characteristics of no noise, no vibration, no pollution, clear ground with high speed of pile driving, reliable construction quality and environmental protection, high efficiency, energy saving. It is welcomed by the customers with wide market prospect .

  • Features
  • Technical parameter
Features

▪ Features:

  Main product: ZYC series multi-functional Hydraulic Static Pile Driver Self-developed with 5 up-to-date patents.
The working principle is using hydraulic pressure to clamp precasted pile, H shape or other shape steel pile, and then driving the pile into ground by hydraulic pressing.
Suitable for piling precast round & square concrete pile, H shape steel pile and other irregular-shaped pile in clay, soft soil and sandy ground.
It has characteristics of no noise, no vibration, no pollution, clear ground with high speed of pile driving, reliable construction quality and environmental protection, high efficiency, energy saving. It is welcomed by the customers with wide market prospect.

▪ Have five latest patented technologies and independent intellectual property rights:



Flexible connection technology
  Novel flexible connection technology of central axis, won national practical patent No. 200820158613.8.


Multi-functional piling technology
  Original combination clamping piling and top piling won invention patent No. ZL02139875.5.
Inverted cylingder technology
  Structure design of inverted cylinder changes strained condition of cylinder and increases the service life of cylinder, won national practical patent No. ZL01249443.7.
Integrative side and corner piling technology
  Particular side and corner piling mechanism increasing the capability of side & corner piling and won national practical patent No. 200820158615.7.
Self-adaptive clamping mechanism
  Original self-adaptive clamping mechanism won national practical patent No. 200820158614.2.


Technical parameter
Rated   piling pressure(tf)1200suitable pile &   specification(mm)¢400-800
Max. Piling speed(m/min)7.5Max. Crane lifting weight(t)25
Piling stroke(m)1.8Hanging pile length(m)15
Max. Longitudinal pace(m)3.6Minimum side piling space(mm)1650
Max. Transverse pace(m)0.52Minimum corner piling space(mm)3000
Max. Rise stroke(m)1.1Intensity of pressure(tf/m²)18.8/23.2
Max.rotation angle per time(°)8Weight composition(t) Machine weight263±4
Rated hydraulic system   pressure(mpa)25(20)Added water weight(t)55
Hydraulic Pump (Unit ×   Ml/Turn)3×125+1×125Counter weight(t)882
Motor power (Unit × kw) 3×37+1×37Total weight(t) ≥1200
